Project Background and Confined Space Inspection Risks
In large-scale utility coal-fired power plants, keeping up with structural and thermal inspections is a continuous, high-stakes operational necessity. At a major thermal facility containing massive boilers, high-altitude chimneys, and vast open coal yards, traditional inspection protocols presented significant safety risks and high operational costs. Boilers and chimneys represent confined, dark, and highly hazardous environments. To inspect boiler tubes for wear, erosion, and structural cracks, plants traditionally had to erect massive scaffolding structures inside the boiler furnace—a process taking several days. Technicians then had to climb hundreds of feet in high-risk, dusty, and toxic-gas-prone confined spaces, exposing them to serious physical safety hazards.
Operational Obstacles in High-Risk Industrial Zones
Beyond the boilers, other critical zones of the thermal power plant presented distinct operational challenges. High-altitude chimneys, often exceeding two hundred meters in height, are highly vulnerable to concrete degradation and lightning damage. Inspecting these structures manually required specialized high-altitude climbing crews, which was both slow and weather-dependent. Furthermore, monitoring and calculating the inventory of massive open-air coal yards required manual physical surveying, a process that was slow, inaccurate, and placed workers in close proximity to heavy coal-handling machinery. The plant required an automated, integrated solution that could perform high-risk inspections remotely, keeping human operators safely outside hazardous zones.
Implementing WThink’s Intelligent Drone and Docking Solution
To address these safety concerns and streamline maintenance, the facility deployed WThink’s Autonomous Drone & Autonomous Inspection System. This comprehensive solution integrates automated drone-in-a-box docking stations with highly specialized, collision-tolerant caged drones designed for GPS-denied, confined environments. By utilizing distinct drone platforms for different zones, the system automates both outdoor structural mapping and indoor confined-space inspections, providing the plant’s engineering team with a continuous stream of high-fidelity diagnostic data without requiring personnel to enter dangerous areas.
Confined Space Diagnostics and Collision-Tolerant Patrols

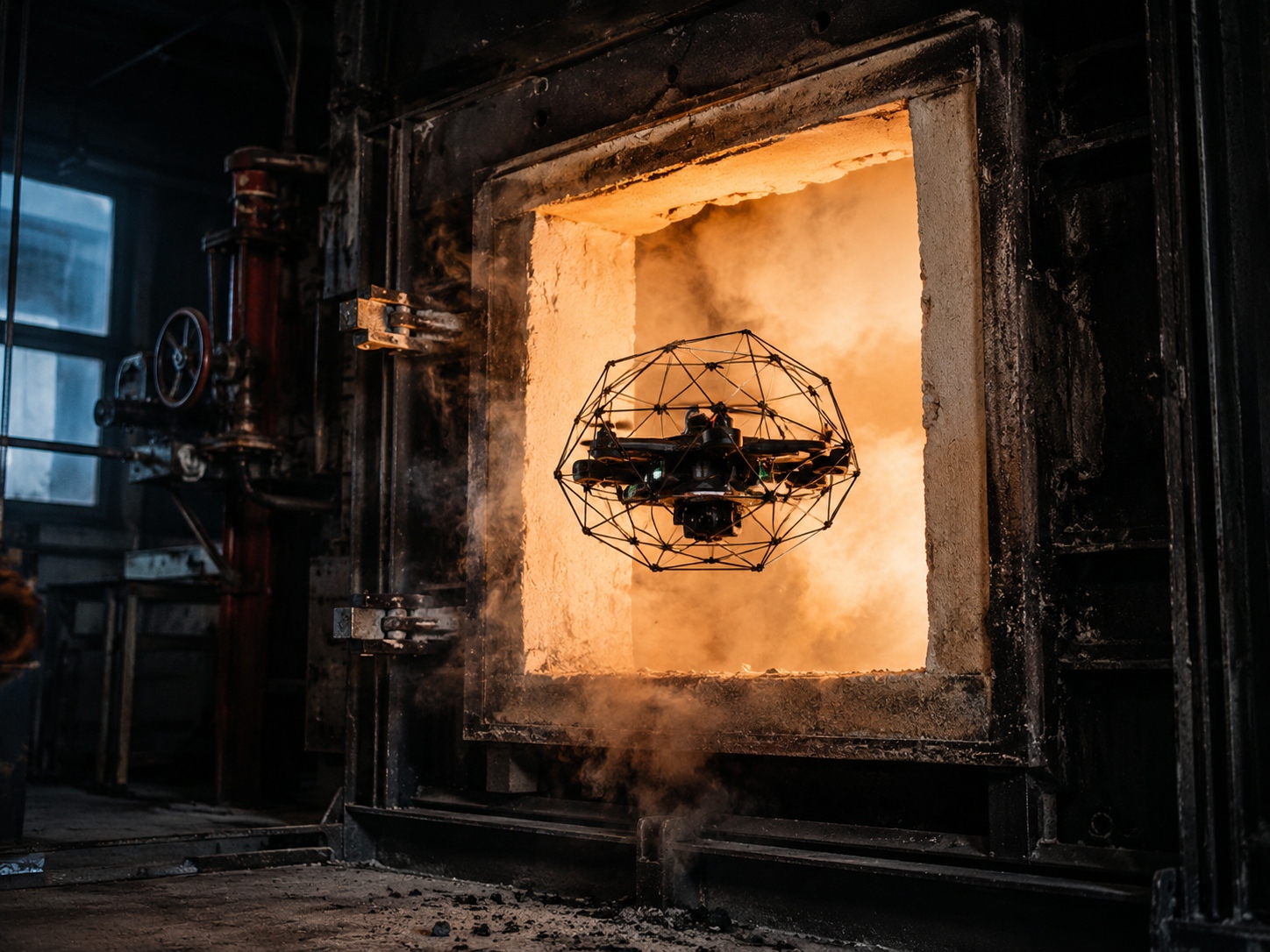

For internal boiler and chimney inspections, the plant utilizes a specialized collision-tolerant drone protected by a spherical carbon fiber wireframe cage. This protective cage allows the drone to fly safely inside the narrow, dark, and dusty confines of the boiler furnace, bouncing off metal boiler tubes and internal walls without crashing. Equipped with high-power onboard LED arrays, thermal sensors, and high-definition optical cameras, the drone navigates easily through GPS-denied environments. It captures detailed visual and thermal imagery of the boiler tubes, allowing engineers to instantly identify tube thinning, slagging, deformation, or insulation cracks from a remote control console, eliminating the need for days of hazardous scaffolding setup.
Outdoor Automation and Centralized Asset Analytics

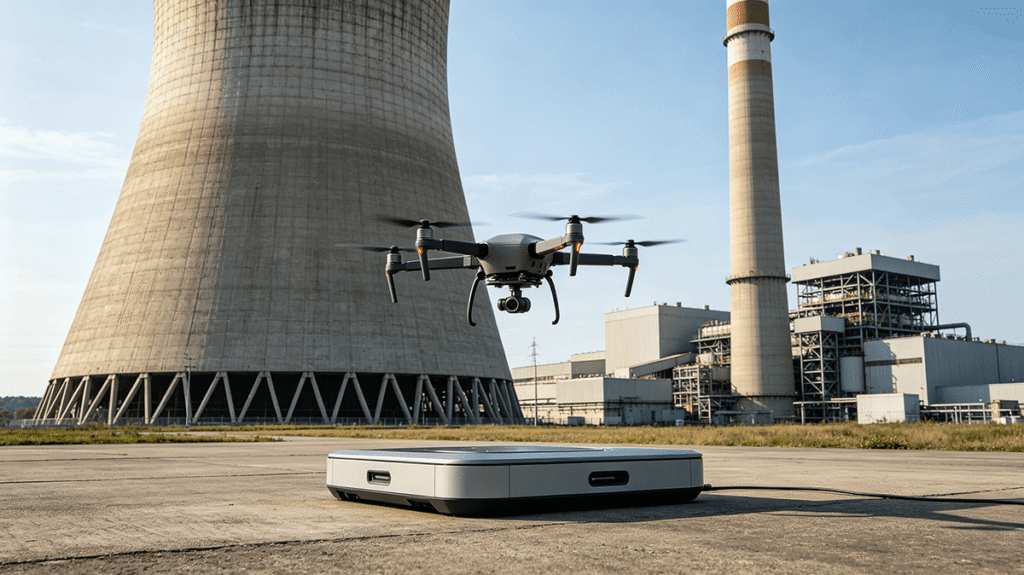

For large outdoor areas, such as the open coal yards and high-altitude chimney exteriors, the plant deployed an automated, weatherproof drone-in-a-box system. Located next to the central cooling towers, the docking station opens autonomously at scheduled intervals. The drone takes off, follows pre-programmed flight trajectories to map the coal yard’s 3D volume or scan the chimney’s concrete exterior, and returns to the dock to recharge. The captured data is automatically uploaded to WThink’s smart inspection platform, where advanced algorithms calculate accurate coal inventory volumes and highlight structural anomalies on the chimneys. The deployment of WThink’s Autonomous Drone & Autonomous Inspection System has significantly enhanced safety and efficiency at the thermal plant, reducing boiler downtime from days of manual scaffold building to just a few hours of remote flight, saving significant operational costs while protecting human lives.
