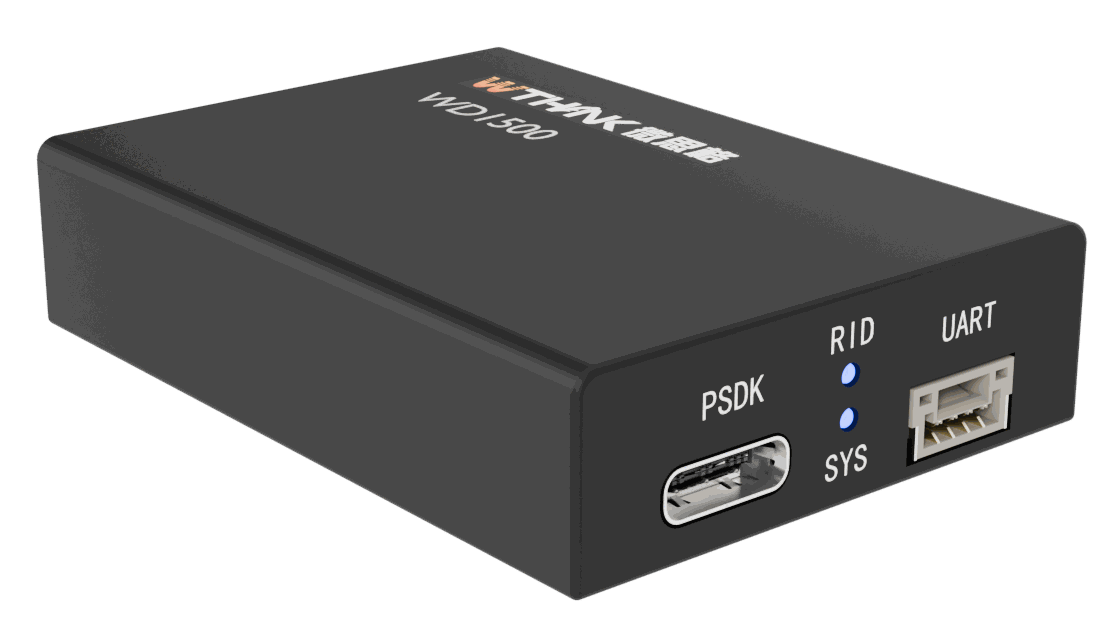

5G RedCap Terminal WD1500

Product Introduction

The WD1500 5G RedCap airborne communication and supervision terminal is a high-performance, ultra-light wireless communication device designed for the low-altitude economy and unmanned systems.

It can match multiple DJI industrial drones and customized unmanned systems to enable ultra-long-distance 5G connected control and reliable real-time data return.

Product Features

• Ultra-light and highly compatible design: 28 g excluding antenna bracket, suitable for DJI M3E/M3T and compatible with larger platforms such as M30 and M350.
• Provides TTL and USB 2.0 OTG expansion interfaces for custom drones, robots, and other mobile unmanned systems.
• End-to-end video stream transmission latency is less than 230 ms.
• Compatible with DJI PSDK interface; one cable integrates power, USB, and TTL.
• Supports Nano-SIM and built-in eSIM dual cards, with 2G/3G/4G/5G/RedCap full-network access.

Application Scenarios

• Drone communication and supervision for the low-altitude economy.
• DJI industrial drones and customized unmanned systems.
• Remote data transmission and control for micro industrial and civil robots.

Product Specifications / Technical Information

• Processor: Single-core ARM Cortex-A55 750 MHz
• Memory / Storage: 128 MB / 256 MB
• Interfaces: DJI PSDK, TTL, USB 2.0 OTG, MMCX antenna
• Dimensions & Weight: 39 x 54 x 12.5 mm; 28 g
• Power Consumption: Average < 2 W, maximum 3.5 W
